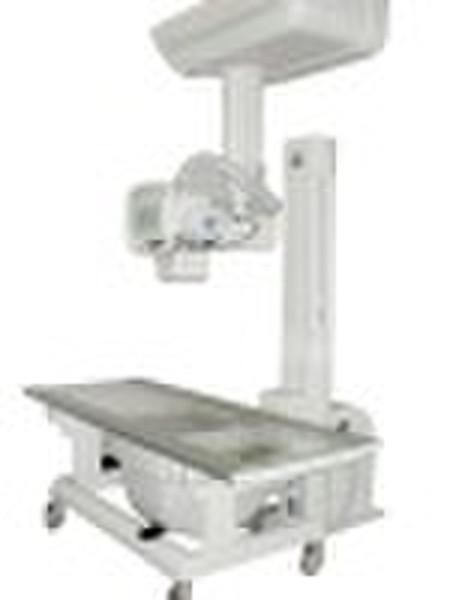

Digital CCD Detector
Sandy Zheng
Contact person
Basic Information
| Brand Name | Angell |
|---|---|
| Model Number | Angell-DR |
| Place of Origin | Guangdong China (Mainland) |
x-ray detector medical equipment Digital DetectorDetector TechnologyBlue Plus CCDScintillatorCsI / GOSEffective View Field17″×17″/ 17″×14″Filling Factor100%Pixel Matrix4k×4k,16 million pixelsPixel Size108um (micron)Maximum Spac Resolution4.6lp/mmOutput Grayscale16bitsTime to Take Image7 secondsPOD TechnologyThe size of the pixel can be doubled and the dose will be reducedPower Supply Requirement220V AC 10A 50HzIn the case of product upgrade, the specification may be changed without notice.Multi-function Automatic StandImaging Partall PurposeVertical Movement400-1600mm(center of the detector)Maximum Speed30 mm/secDetector Rotation0-270 degreeRotation Speed2 degree/secMain Functions of the Angell-1600 WorkstationImaging Part Indicator,Tissue Equalization,Filter Correction,Grayscale Transform,Window/Level Adjustment,Gamma Correction,ROI Equalization,Black/White Reversion,Image Segmentation, Mark,Enhancement,Smoothing,Sharpening,Compression,Magnification,Graphic/text report, Printing/typesetNet Interface DICOM Standard CompatibleUpgrading RequirementAngell-DR is suitable for digital upgrading of traditional screen/film x-ray imaging equipment.The basic requirement is an X-ray generator or digital gastroenterography with high frequency and high voltage (30-130KV, 500mA).
Delivery terms and packaging
Packaging Detail: wooden box package Delivery Detail: 7days after the receipt of pay
Port: shenzhen port
