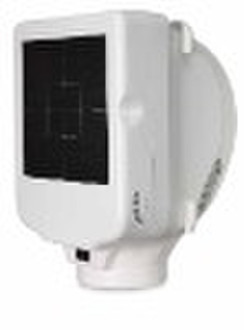

CCD Detector
Sandy Zheng
Contact person
Basic Information
| Brand Name | Angell |
|---|---|
| Model Number | Angell-DR |
| Place of Origin | Guangdong China (Mainland) |
medical imaging, medical imaging products for direct imaging, digital imagingdetector Main Function Main FunctionDigital DetectorBlue Plus CCDScintillatorCesium Iodide,Csl / Gd202S,GOSEffective View Field17″×17″/ 17″×14″Filling Factor100%Pixel Matrix4k×4k,3kx3kPixel Size108um (micron)/ /140umMaximum Spac Resolution4.6lp/mm/3.57lp/mmGrayscale14bitsTime to Take Image≤5 secondsPOD TechnologyThe size of the pixel can be doubled and the dose will be reducedPower Supply Requirement220V AC 10A 50HzIn the case of product upgrade, the specification may be changed without notice.Multi-function Automatic StandImaging Partall PurposeVertical Movement43-183cm(center of the detector)Maximum Speed30 mm/secDetector Rotation0-270 degreeRotation Speed2 degree/secMain Functions of the Angell-1600 WorkstationImaging Part Indicator,Tissue Equalization,Filter Correction,Grayscale TransformWindow/Level Adjustment,Gamma Correction,ROI Equalization,Black/White ReversionImage Segmentation, Mark,Enhancement,SmoothingSharpening,Compression,Magnification,Graphic/text report, Printing/typesetNet Interface DICOM Standard CompatibleUpgrading RequirementAngell-DR is suitable for digital upgrading of traditional screen/film x-ray imaging equipmentThe basic requirement is an X-ray generator or digital gastroenterographywith high frequency and high voltage above 30KW,200mA
Delivery terms and packaging
Packaging Detail: precision box package Delivery Detail: 7 days after receiving the payment
Port: Shenzhen port
